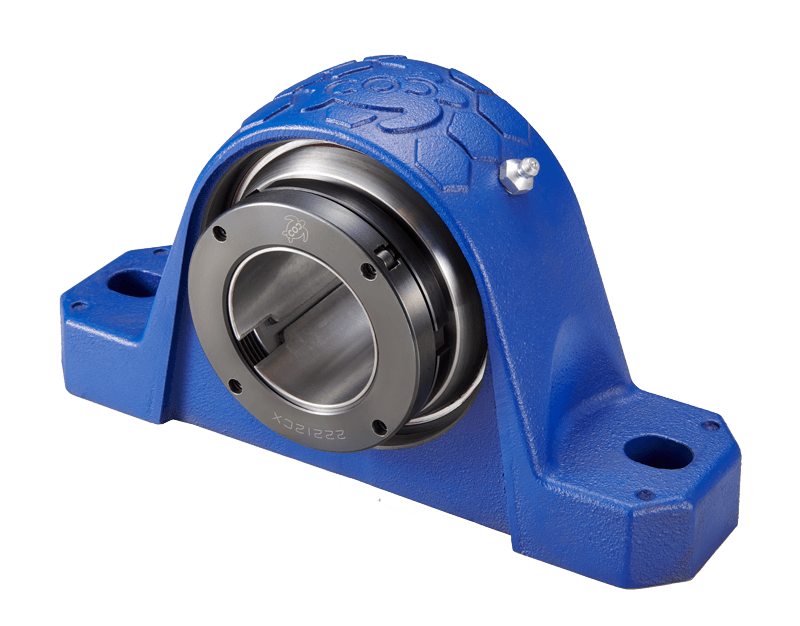

CX2SN  vs.  SN5



DIMENSI SAMA

Unit Siap Pasang

PRODUK

User assembled

Pemesanan hanya perlu satu part

ORDER

Minimal tiga part untuk di order

Triple lip seal menyentuh dengan stainless steel flinger, tidak menyentuh poros atau as dalam. Seal tetap mengerat pada saat ketidakselarasan.
The grease in CX2SN bearing purges depending on the speed of application. As the RPM’s increse this seal allow the excess grease to excape allowing it to run at lower temperatures.

SEAL

Lip Seal menyentuh dengan poros yang merusak atau melukai poros.  Pada saat ketidakselarasan, seal akan menjadi lemah.
The SN bearing has a larger void meaning more grease is needed. The seal design of the SN bearing does not allow excess grease to purge easily meaning that it continually runs at a higher temperature.

CROSSLOC™
Holds with a long sleeve.

CARA MENGUNCI

ADAPTER
Pemegangan dengan sleeve pendek.

MUDAH

  • Tighten cap screws in star pattern to lock

INSTALASI

SULIT

  • Check the clearance with feeler gauges
  • Tighten lock nut until the appropriate clearance in chart
  • Bend a tub of lock washer

EASY

  • Loosen cap screws in star pattern to remove

MELEPAS

DIFFICULT

  • Untighen lock nut and hit with hummer to remove
  • Or Use pulley puller to remove

Kunci ‘L’
Kunci Torsi (di rekomendasikan)

Tidak membengkok atau membentuk baut.

PERALATAN

Kunci Pas
Palu dan drift-pin
Feeler gauges dan chart.

Sudah di lubrikasi

LUBRIKASI

Perlu di lubrikasi sebelum instalasi
Needs 4 times more grease than CX2SN because SN has a larger void.
