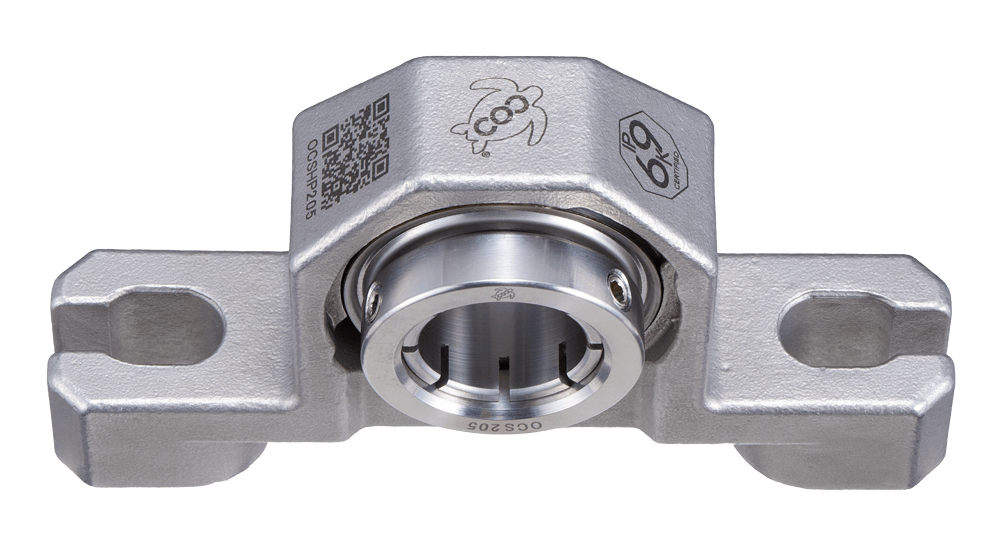

2D & 3D CAD files are available on each page below.
OCSHP_download
| Unit No. | Bearing No. | Shaft Dia. | H | L | J | Y | Bolt Size | Cr | Cor | 2D CAD | 3D CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|
| OCSHP204-12M | OCS204-12M | 12 mm | 46 mm | 127 mm | 95 mm | 12.7 mm | M10 | 11.1 kN | 5.41 kN | DXF | STEP |
| OCSHP204-8 | OCS204-8 | 1/2 in | 1 13/16 in | 5 in | 3 3/4 in | 1/2 in | 3/8 in | 2497 lbf | 1217 lbf | DXF | STEP |
| OCSHP204-15M | OCS204-15M | 15 mm | 46 mm | 127 mm | 95 mm | 12.7 mm | M10 | 11.1 kN | 5.41 kN | DXF | STEP |
| OCSHP204-10 | OCS204-10 | 5/8 in | 1 13/16 in | 5 in | 3 3/4 in | 1/2 in | 3/8 in | 2497 lbf | 1217 lbf | DXF | STEP |
| OCSHP204-17M | OCS204-17M | 17 mm | 46 mm | 127 mm | 95 mm | 12.7 mm | M10 | 11.1 kN | 5.41 kN | DXF | STEP |
| OCSHP204-12 | OCS204-12 | 3/4 in | 1 13/16 in | 5 in | 3 3/4 in | 1/2 in | 3/8 in | 2497 lbf | 1217 lbf | DXF | STEP |
| OCSHP204 | OCS204 | 20 mm | 46 mm | 127 mm | 95 mm | 12.7 mm | M10 | 11.1 kN | 5.41 kN | DXF | STEP |
| OCSHP205-14 | OCS205-14 | 7/8 in | 1 15/16 in | 5 1/2 in | 4 1/8 in | 1/2 in | 3/8 in | 2745 lbf | 1462 lbf | DXF | STEP |
| OCSHP205-15 | OCS205-15 | 15/16 in | 1 15/16 in | 5 1/2 in | 4 1/8 in | 1/2 in | 3/8 in | 2745 lbf | 1462 lbf | DXF | STEP |
| OCSHP205 | OCS205 | 25 mm | 49.2 mm | 140 mm | 105 mm | 12.7 mm | M10 | 12.2 kN | 6.5 kN | DXF | STEP |
| OCSHP205-16 | OCS205-16 | 1 in | 1 15/16 in | 5 1/2 in | 4 1/8 in | 1/2 in | 3/8 in | 2745 lbf | 1462 lbf | DXF | STEP |
| OCSHP206-18 | OCS206-18 | 1 1/8 in | 2 3/16 in | 6 1/2 in | 4 3/4 in | 1/2 in | 1/2 in | 3757 lbf | 1867 lbf | DXF | STEP |
| OCSHP206 | OCS206 | 30 mm | 55.6 mm | 165 mm | 121 mm | 12.7 mm | M14 | 16.7 kN | 9.11 kN | DXF | STEP |
| OCSHP206-19 | OCS206-19 | 1 3/16 in | 2 3/16 in | 6 1/2 in | 4 3/4 in | 1/2 in | 1/2 in | 3757 lbf | 1867 lbf | DXF | STEP |
| OCSHP206-20 | OCS206-20 | 1 1/4 in | 2 3/16 in | 6 1/2 in | 4 3/4 in | 1/2 in | 1/2 in | 3757 lbf | 1867 lbf | DXF | STEP |
| OCSHP207-20 | OCS207-20 | 1 1/4 in | 2 3/8 in | 6 9/16 in | 5 in | 1/2 in | 1/2 in | 4927 lbf | 2812 lbf | DXF | STEP |
| OCSHP207-21 | OCS207-21 | 1 5/16 in | 2 3/8 in | 6 9/16 in | 5 in | 1/2 in | 1/2 in | 4927 lbf | 2812 lbf | DXF | STEP |
| OCSHP207-22 | OCS207-22 | 1 3/8 in | 2 3/8 in | 6 9/16 in | 5 in | 1/2 in | 1/2 in | 4927 lbf | 2812 lbf | DXF | STEP |
| OCSHP207 | OCS207 | 35 mm | 60.3 mm | 167 mm | 127 mm | 12.7 mm | M14 | 21.9 kN | 12.5 kN | DXF | STEP |
| OCSHP207-23 | OCS207-23 | 1 7/16 in | 2 3/8 in | 6 9/16 in | 5 in | 1/2 in | 1/2 in | 4927 lbf | 2812 lbf | DXF | STEP |
