CS-inserts

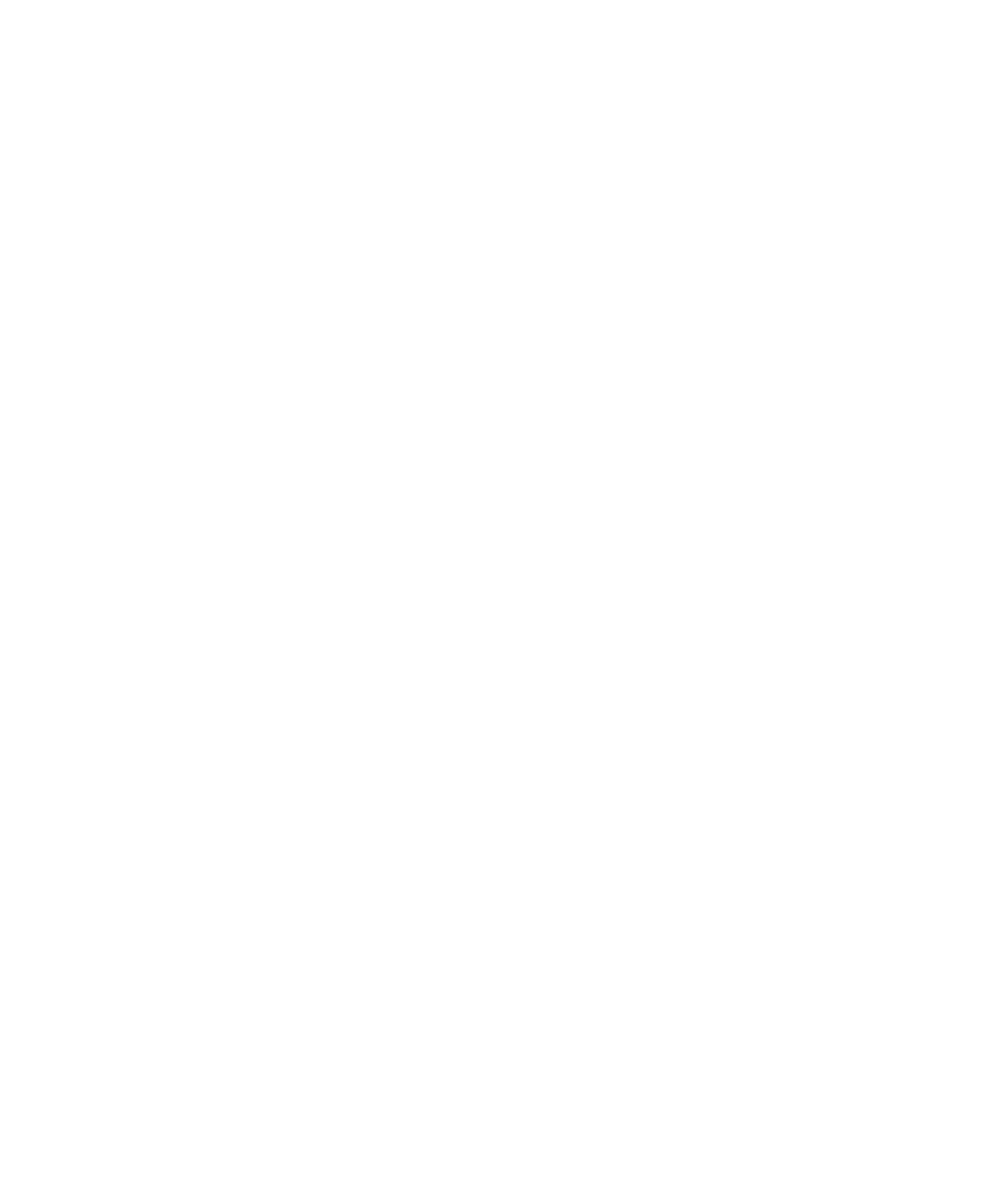

Bearing No. Labyrinth Seal Shaft Dia. D D1 D2 B B1 V2 Cr Cor Weight
22208-107CS 22208-107CSL 1 7/16 in 3.1496 in 2 11/32 in 2 55/64 in 2 45/64 in 15/16 in 63/64 in 20408 lbf 21623 lbf 2.15 lbs
22208-108CS 22208-108CSL 1 1/2 in 3.1496 in 2 11/32 in 2 55/64 in 2 45/64 in 15/16 in 63/64 in 20408 lbf 21623 lbf 2.15 lbs
22208-040CS 22208-040CSL 40 mm 80 mm 59.3 mm 72.5 mm 68.89 mm 23.8 mm 25.06 mm 90.7 kN 96.1 kN 0.98 kg
22209-111CS 22209-111CSL 1 11/16 in 3.3465 in 2 5/8 in 3 1/32 in 2 49/64 in 15/16 in 1 1/32 in 21150 lbf 23625 lbf 2.33 lbs
22209-112CS 22209-112CSL 1 3/4 in 3.3465 in 2 5/8 in 3 1/32 in 2 49/64 in 15/16 in 1 1/32 in 21150 lbf 23625 lbf 2.33 lbs
22209-045CS 22209-045CSL 45 mm 85 mm 66.5 mm 76.8 mm 70.1 mm 23.8 mm 26.24 mm 94 kN 105 kN 1.06 kg
22210-115CS 22210-115CSL 1 15/16 in 3.5433 in 2 7/8 in 3 15/64 in 2 27/32 in 15/16 in 1 1/64 in 22095 lbf 25313 lbf 2.59 lbs
22210-050CS 22210-050CSL 50 mm 90 mm 73 mm 82.2 mm 72.14 mm 23.8 mm 25.83 mm 98.2 kN 112.5 kN 1.18 kg
22210-200CS 22210-200CSL 2 in 3.5433 in 2 7/8 in 3 15/64 in 2 27/32 in 15/16 in 1 1/64 in 22095 lbf 25313 lbf 2.59 lbs
22211-055CS 22211-055CSL 55 mm 100 mm 85 mm 92.3 mm 76.03 mm 25.8 mm 26.95 mm 122 kN 145 kN 1.67 kg
22211-203CS 22211-203CSL 2 3/16 in 3.9370 in 3 11/32 in 3 41/64 in 3 in 1 1/64 in 1 1/16 in 27450 lbf 32625 lbf 3.67 lbs
22211-204CS 22211-204CSL 2 1/4 in 3.9370 in 3 11/32 in 3 41/64 in 3 in 1 1/64 in 1 1/16 in 27450 lbf 32625 lbf 3.67 lbs
22213-060CS 22213-060CSL 60 mm 120 mm 91.1 mm 108.6 mm 90.19 mm 32 mm 32.85 mm 178 kN 212 kN 2.72 kg
22213-207CS 22213-207CSL 2 7/16 in 4.7244 in 3 19/32 in 4 9/32 in 3 35/64 in 1 19/64 in 1 19/64 in 40050 lbf 47700 lbf 5.98 lbs
22213-208CS 22213-208CSL 2 1/2 in 4.7244 in 3 19/32 in 4 9/32 in 3 35/64 in 1 19/64 in 1 19/64 in 40050 lbf 47700 lbf 5.98 lbs
22213-065CS 22213-065CSL 65 mm 120 mm 91.1 mm 108.6 mm 90.19 mm 32 mm 32.85 mm 178 kN 212 kN 2.72 kg
22215-211CS 22215-211CSL 2 11/16 in 5.1181 in 4 3/32 in 4 45/64 in 3 21/32 in 1 19/64 in 1 11/32 in 42075 lbf 51300 lbf 7.41 lbs
22215-212CS 22215-212CSL 2 3/4 in 5.1181 in 4 3/32 in 4 45/64 in 3 21/32 in 1 19/64 in 1 11/32 in 42075 lbf 51300 lbf 7.41 lbs
22215-070CS 22215-070CSL 70 mm 130 mm 104 mm 119.2 mm 92.71 mm 32 mm 34.06 mm 187 kN 228 kN 3.37 kg
22215-215CS 22215-215CSL 2 15/16 in 5.1181 in 4 3/32 in 4 45/64 in 3 21/32 in 1 19/64 in 1 11/32 in 42075 lbf 51300 lbf 7.41 lbs
22215-075CS 22215-075CSL 75 mm 130 mm 104 mm 119.2 mm 92.71 mm 32 mm 34.06 mm 187 kN 228 kN 3.37 kg
22215-300CS 22215-300CSL 3 in 5.1181 in 4 3/32 in 4 45/64 in 3 21/32 in 1 19/64 in 1 11/32 in 42075 lbf 51300 lbf 7.41 lbs
22218-080CS 22218-080CSL 80 mm 160 mm 125 mm 146.5 mm 104.74 mm 41.4 mm 40 mm 302 kN 373 kN 5.87 kg
22218-085CS 22218-085CSL 85 mm 160 mm 125 mm 146.5 mm 104.74 mm 41.4 mm 40 mm 302 kN 373 kN 5.87 kg
22218-307CS 22218-307CSL 3 7/16 in 6.2992 in 4 59/64 in 5 49/64 in 4 1/8 in 1 5/8 in 1 37/64 in 67950 lbf 83925 lbf 12.9 lbs
22218-308CS 22218-308CSL 3 1/2 in 6.2992 in 4 59/64 in 5 49/64 in 4 1/8 in 1 5/8 in 1 37/64 in 67950 lbf 83925 lbf 12.9 lbs
22218-090CS 22218-090CSL 90 mm 160 mm 125 mm 146.5 mm 104.74 mm 41.4 mm 40 mm 302 kN 373 kN 5.87 kg
22220-100CS 22220-100CSL 100 mm 180 mm 144.5 mm 163.4 mm 117.73 mm 47.4 mm 44.58 mm 371 kN 471 kN 8.4 kg
22220-315CS 22220-315CSL 3 15/16 in 7.0866 in 5 11/16 in 6 7/16 in 4 41/64 in 1 55/64 in 1 3/4 in 83475 lbf 105975 lbf 18.5 lbs
22220-400CS 22220-400CSL 4 in 7.0866 in 5 11/16 in 6 7/16 in 4 41/64 in 1 55/64 in 1 3/4 in 83475 lbf 105975 lbf 18.5 lbs
22222-407CS 22222-407CSL 4 7/16 in 7.8740 in 6 3/16 in 7-7/64 in 5 9/64 in 2 5/32 in 2 3/64 in 136350 lbf 164475 lbf 25.19 lbs
