2D & 3D CADファイルは以下の各ページからダウンロード可能です。

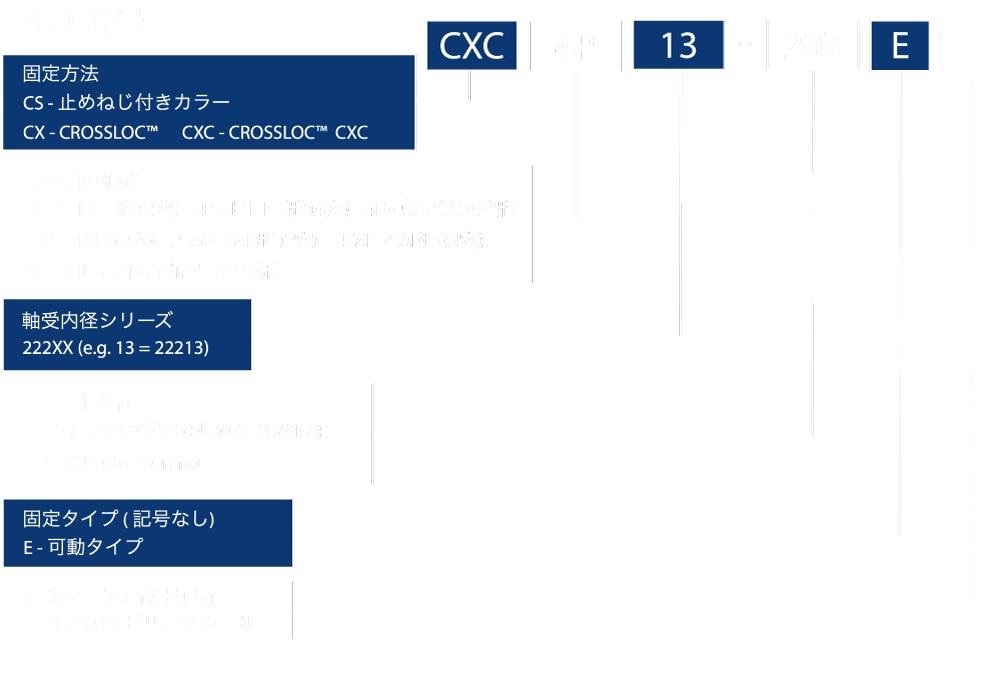

CXC4P

Unit No. Bearing No. Shaft Dia. H L J Bolt Size Cr Cor
CXC4P13-060 22213-060CXC 60 mm 69.8 mm 222 mm 181 mm M12 178 kN 212 kN
CXC4P13-207 22213-207CXC 2 7/16 in 2 3/4 in 8 3/4 in 7 1/8 in 1/2 in 40050 lbf 47700 lbf
CXC4P13-208 22213-208CXC 2 1/2 in 2 3/4 in 8 3/4 in 7 1/8 in 1/2 in 40050 lbf 47700 lbf
CXC4P13-065 22213-065CXC 65 mm 69.8 mm 222 mm 181 mm M12 178 kN 212 kN
CXC4P15-211 22215-211CXC 2 11/16 in 3 1/4 in 9 7/8 in 8 1/8 in 5/8 in 42075 lbf 51300 lbf
CXC4P15-212 22215-212CXC 2 3/4 in 3 1/4 in 9 7/8 in 8 1/8 in 5/8 in 42075 lbf 51300 lbf
CXC4P15-070 22215-070CXC 70 mm 82.6 mm 251 mm 206 mm M16 187 kN 228 kN
CXC4P15-215 22215-215CXC 2 15/16 in 3 1/4 in 9 7/8 in 8 1/8 in 5/8 in 42075 lbf 51300 lbf
CXC4P15-075 22215-075CXC 75 mm 82.6 mm 251 mm 206 mm M16 187 kN 228 kN
CXC4P15-300 22215-300CXC 3 in 3 1/4 in 9 7/8 in 8 1/8 in 5/8 in 42075 lbf 51300 lbf
CXC4P18-080 22218-080CXC 80 mm 95.2 mm 315 mm 254 mm M20 302 kN 373 kN
CXC4P18-085 22218-085CXC 85 mm 95.2 mm 315 mm 254 mm M20 302 kN 373 kN
CXC4P18-307 22218-307CXC 3 7/16 in 3 3/4 in 12 13/32 in 10 in 3/4 in 67950 lbf 83925 lbf
CXC4P18-308 22218-308CXC 3 1/2 in 3 3/4 in 12 13/32 in 10 in 3/4 in 67950 lbf 83925 lbf
CXC4P18-090 22218-090CXC 90 mm 95.2 mm 315 mm 254 mm M20 302 kN 373 kN
CXC4P20-100 22220-100CXC 100 mm 108 mm 375 mm 310 mm M20 371 kN 471 kN
CXC4P20-315 22220-315CXC 3 15/16 in 4 1/4 in 14 3/4 in 12 7/32 in 3/4 in 83475 lbf 105975 lbf
CXC4P20-400 22220-400CXC 4 in 4 1/4 in 14 3/4 in 12 7/32 in 3/4 in 83475 lbf 105975 lbf
CXC4P22-110 22222-110CXC 110 mm 120.7 mm 419 mm 338 mm M20 606 kN 731 kN
CXC4P22-407 22222-407CXC 4 7/16 in 4 3/4 in 16 1/2 in 13 5/16 in 3/4 in 136350 lbf 164475 lbf
CXC4(E)P26-125 22226-125CXC 125 mm 139.7 mm 473 mm 398 mm M22 810 kN 1158 kN
CXC4(E)P26-415 22226-415CXC 4 15/16 in 5 1/2 in. 18 5/8 in. 15 1/2 in. 7/8 in. 182250 lbf 260550 lbf
CXC4(E)P26-500 22226-500CXC 5 in 5 1/2 in. 18 5/8 in. 15 1/2 in. 7/8 in. 182250 lbf 260550 lbf

クロスロックユニットの脱着方法

クロスロックエクスパンションユニットの脱着方法
