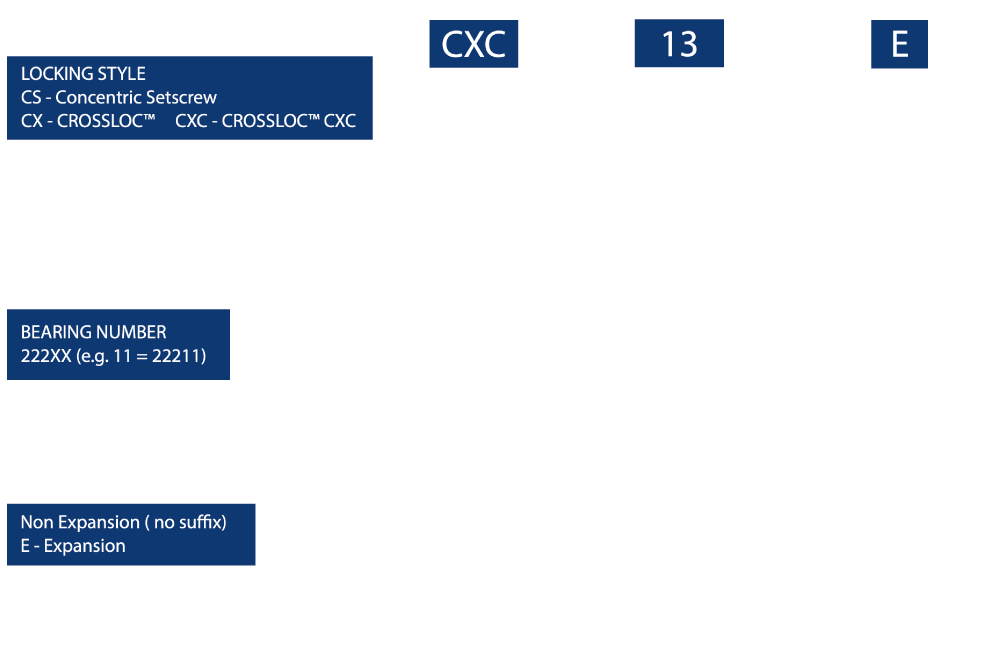

CXC4EP

Unit No. Bearing No. Shaft Dia. H L J Bolt Size Cr Cor
CXC4EP13-207 22213-207CXC 2 7/16 in. 2 3/4 in. 10 1/2 in. 8 1/2 in. 5/8 in. 40050 lbf 47700 lbf
CXC4EP13-208 22213-208CXC 2 1/2 in. 2 3/4 in. 10 1/2 in. 8 1/2 in. 5/8 in. 40050 lbf 47700 lbf
CXC4EP15-211 22215-211CXC 2 11/16 in. 3 1/8 in. 12 in. 9 1/2 in. 5/8 in. 42075 lbf 51300 lbf
CXC4EP15-212 22215-212CXC 2 3/4 in. 3 1/8 in. 12 in. 9 1/2 in. 5/8 in. 42075 lbf 51300 lbf
CXC4EP15-215 22215-215CXC 2 15/16 in. 3 1/8 in. 12 in. 9 1/2 in. 5/8 in. 42075 lbf 51300 lbf
CXC4EP15-300 22215-300CXC 3 in. 3 1/8 in. 12 in. 9 1/2 in. 5/8 in. 42075 lbf 51300 lbf
CXC4EP18-307 22218-307CXC 3 7/16 in. 3 3/4 in. 13 1/2 in. 11 in. 3/4 in. 67950 lbf 83925 lbf
CXC4EP18-308 22218-308CXC 3 1/2 in. 3 3/4 in. 13 1/2 in. 11 in. 3/4 in. 67950 lbf 83925 lbf
CXC4EP20-315 22220-315CXC 3 15/16 in. 4 1/4 in. 15 1/4 in. 12 1/2 in. 3/4 in. 83475 lbf 105975 lbf
CXC4EP20-400 22220-400CXC 4 in. 4 1/4 in. 15 1/4 in. 12 1/2 in. 3/4 in. 83475 lbf 105975 lbf
CXC4EP22-407 22222-407CXC 4 7/16 in. 4 3/4 in. 16 5/8 in. 13 1/2 in. 3/4 in. 136350 lbf 164475 lbf
CXC4(E)P26-415 22226-415CXC 4 15/16 in. 5 1/2 in. 18 5/8 in. 15 1/2 in. 7/8 in. 182250 lbf 260550 lbf
CXC4(E)P26-500 22226-500CXC 5 in. 5 1/2 in. 18 5/8 in. 15 1/2 in. 7/8 in. 182250 lbf 260550 lbf
