CXCT

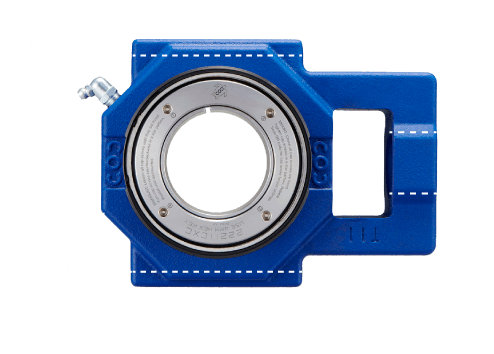

| Unit No. | Bearing No. | Shaft Dia. | H | H1 | L | N | Cr | Cor |
|---|---|---|---|---|---|---|---|---|
| CXCT10-115 | 22210-115CXC | 1 15/16 in | 4 9/16 in | 4 in | 6 3/16 in | 1 1/8 in | 22095 lbf | 25313 lbf |
| CXCT11-055 | 22211-055CXC | 55 mm | 133 mm | 114.3 mm | 180 mm | 36 mm | 122 kN | 145 kN |
| CXCT11-203 | 22211-203CXC | 2 3/16 in | 5 1/4 in | 4 1/2 in | 7 1/8 in | 1 3/8 in | 27450 lbf | 32625 lbf |
| CXCT13-060 | 22213-060CXC | 60 mm | 149 mm | 130.2 mm | 198 mm | 36 mm | 178 kN | 212 kN |
| CXCT13-207 | 22213-207CXC | 2 7/16 in | 5 7/8 in | 5 1/8 in | 7 13/16 in | 1 3/8 in | 40050 lbf | 47700 lbf |
| CXCT13-208 | 22213-208CXC | 2 1/2 in | 5 7/8 in | 5 1/8 in | 7 13/16 in | 1 3/8 in | 40050 lbf | 47700 lbf |
| CXCT13-065 | 22213-065CXC | 65 mm | 149 mm | 130.2 mm | 198 mm | 36 mm | 178 kN | 212 kN |
| CXCT15-211 | 22215-211CXC | 2 11/16 in | 6 11/16 in | 5 15/16 in | 9 in | 1 5/8 in | 42075 lbf | 51300 lbf |
| CXCT15-212 | 22215-212CXC | 2 3/4 in | 6 11/16 in | 5 15/16 in | 9 in | 1 5/8 in | 42075 lbf | 51300 lbf |
| CXCT15-070 | 22215-070CXC | 70 mm | 170 mm | 150.8 mm | 228 mm | 42 mm | 187 kN | 228 kN |
| CXCT15-215 | 22215-215CXC | 2 15/16 in | 6 11/16 in | 5 15/16 in | 9 in | 1 5/8 in | 42075 lbf | 51300 lbf |
| CXCT15-075 | 22215-075CXC | 75 mm | 170 mm | 150.8 mm | 228 mm | 42 mm | 187 kN | 228 kN |
| CXCT15-300 | 22215-300CXC | 3 in | 6 11/16 in | 5 15/16 in | 9 in | 1 5/8 in | 42075 lbf | 51300 lbf |
