CST

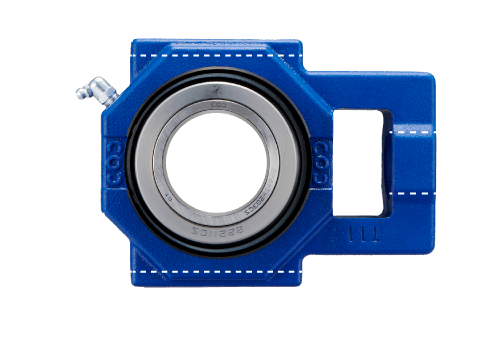

| Unit No. | Bearing No. | Shaft Dia. | H | H1 | L | N | Cr | Cor |
|---|---|---|---|---|---|---|---|---|
| CST10-115 | 22210-115CS | 1 15/16 in | 4 9/16 in | 4 in | 6 3/16 in | 1 1/8 in | 22095 lbf | 25313 lbf |
| CST10-050 | 22210-050CS | 50 mm | 116 mm | 101.6 mm | 157 mm | 29 mm | 98.2 kN | 112.5 kN |
| CST10-200 | 22210-200CS | 2 in | 4 9/16 in | 4 in | 6 3/16 in | 1 1/8 in | 22095 lbf | 25313 lbf |
| CST11-055 | 22211-055CS | 55 mm | 133 mm | 114.3 mm | 180 mm | 36 mm | 122 kN | 145 kN |
| CST11-203 | 22211-203CS | 2 3/16 in | 5 1/4 in | 4 1/2 in | 7 1/8 in | 1 3/8 in | 27450 lbf | 32625 lbf |
| CST11-204 | 22211-204CS | 2 1/4 in | 5 1/4 in | 4 1/2 in | 7 1/8 in | 1 3/8 in | 27450 lbf | 32625 lbf |
| CST13-060 | 22213-060CS | 60 mm | 149 mm | 130.2 mm | 198 mm | 36 mm | 178 kN | 212 kN |
| CST13-207 | 22213-207CS | 2 7/16 in | 5 7/8 in | 5 1/8 in | 7 13/16 in | 1 3/8 in | 40050 lbf | 47700 lbf |
| CST13-208 | 22213-208CS | 2 1/2 in | 5 7/8 in | 5 1/8 in | 7 13/16 in | 1 3/8 in | 40050 lbf | 47700 lbf |
| CST13-065 | 22213-065CS | 65 mm | 149 mm | 130.2 mm | 198 mm | 36 mm | 178 kN | 212 kN |
| CST15-211 | 22215-211CS | 2 11/16 in | 6 11/16 in | 5 15/16 in | 9 in | 1 5/8 in | 42075 lbf | 51300 lbf |
| CST15-212 | 22215-212CS | 2 3/4 in | 6 11/16 in | 5 15/16 in | 9 in | 1 5/8 in | 42075 lbf | 51300 lbf |
| CST15-070 | 22215-070CS | 70 mm | 170 mm | 150.8 mm | 228 mm | 42 mm | 187 kN | 228 kN |
| CST15-215 | 22215-215CS | 2 15/16 in | 6 11/16 in | 5 15/16 in | 9 in | 1 5/8 in | 42075 lbf | 51300 lbf |
| CST15-075 | 22215-075CS | 75 mm | 170 mm | 150.8 mm | 228 mm | 42 mm | 187 kN | 228 kN |
| CST15-300 | 22215-300CS | 3 in | 6 11/16 in | 5 15/16 in | 9 in | 1 5/8 in | 42075 lbf | 51300 lbf |
