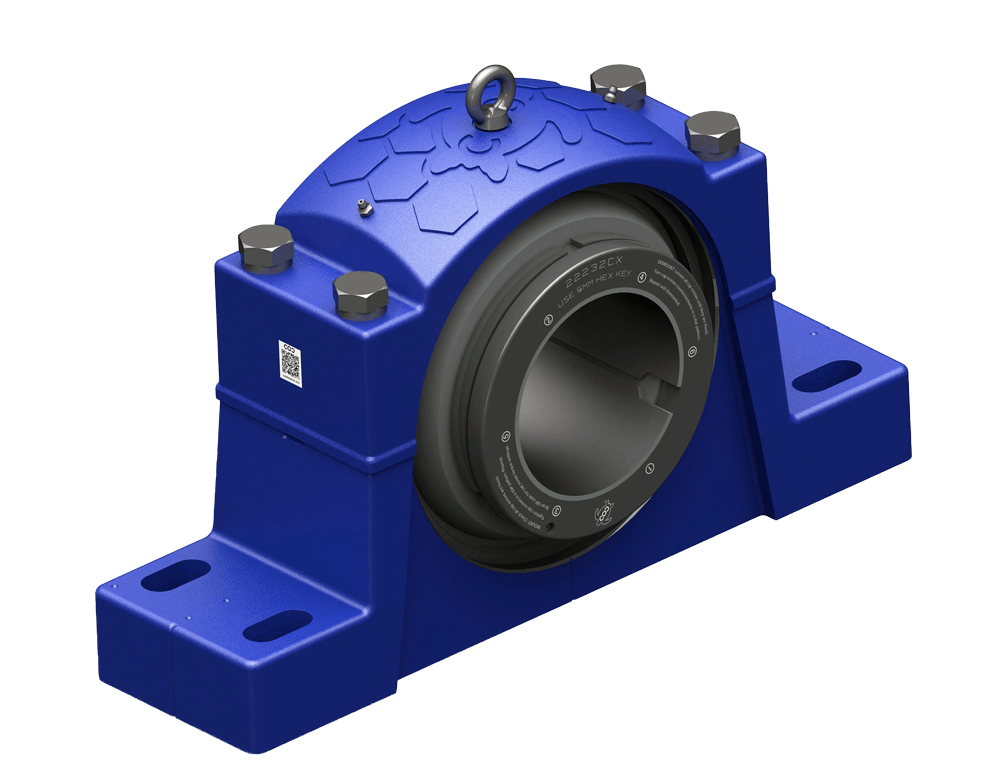

CX4SAF34-38

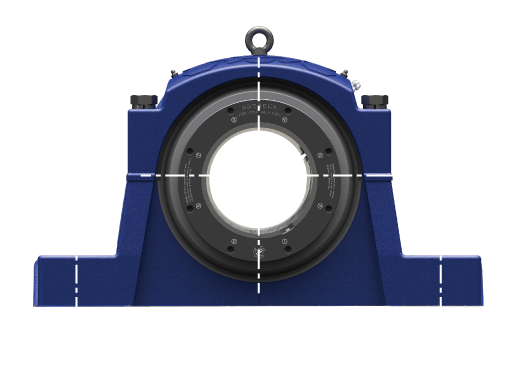

Unit No.	Bearing No.	Shaft Dia.	Sleeve	H	L	J	Bolt Size	Cr	Cor
CX4SAF34-150	22234-150CX	150 mm	A2334X	179.4 mm	629 mm	521 mm	M24	1430 kN	1933 kN
CX4SAF34-515	22234-515CX	5 15/16 in	AA2334X	7 1/16 in	24 3/4 in	20 1/2 in	1 in	321750 lbf	434925 lbf
CX4SAF34-600	22234-600CX	6 in	AE2334X	7 1/16 in	24 3/4 in	20 1/2 in	1 in	321750 lbf	434925 lbf

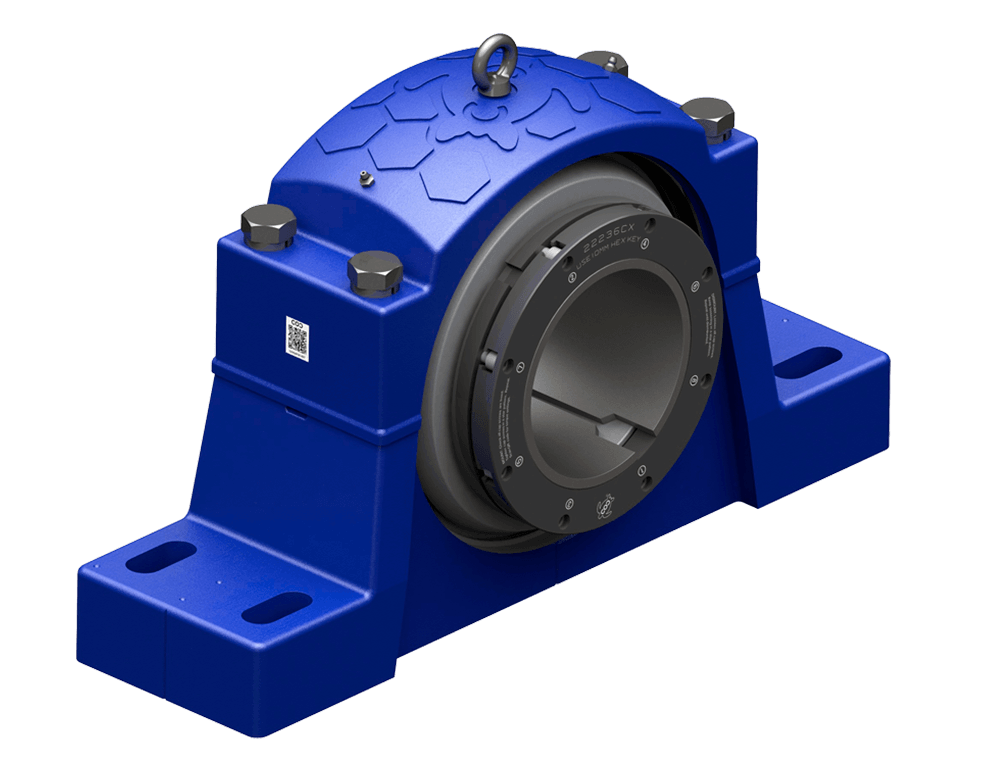

CX4SAF36-160	22236-160CX	160 mm	A2336X	190.5 mm	680 mm	565 mm	M24	1430 kN	1933 kN
CX4SAF36-607	22236-607CX	6 7/16 in	AA2336X	7 1/2 in	26 3/4 in	22 1/4 in	1 in	321750 lbf	434925 lbf
CX4SAF36-608	22236-608CX	6 1/2 in	AE2336X	7 1/2 in	26 3/4 in	22 1/4 in	1 in	321750 lbf	434925 lbf
CX4SAF38-170	22238-170CX	170 mm	B2338	200.2 mm	711 mm	584 mm	M30	1430 kN	1933 kN
CX4SAF38-615	22238-615CX	6 15/16 in	BA2338	7 7/8 in	28 in	23 in	1 1/4 in	321750 lbf	434925 lbf
CX4SAF38-700	22238-700CX	7 in	BE2338	7 7/8 in	28 in	23 in	1 1/4 in	321750 lbf	434925 lbf
